Capacity
Up to 120 theatre-style, 174 standing (with seating risers removed).
Included in rental:
Lighting: 6 zones, approximately 12'. Possible to provide Warm and Cool wash. Colour changing LEDs also allow for area lights to work as specials.
Sound: Full access to surround-sound and subwoofers. Client may provide own laptop with sound effects to run the show.
Dressing Rooms: Two large dressing rooms, each with an accessible washroom and shower. Green Room with microwave, full-sized fridge and coffee maker. Washing machine and dryer available.
Box Office: Enclosed box office with three stations. Wi-Fi available (upon request) to run own box office and ticketing services. The Department of Theatre does not provide Box Office or ticketing services.

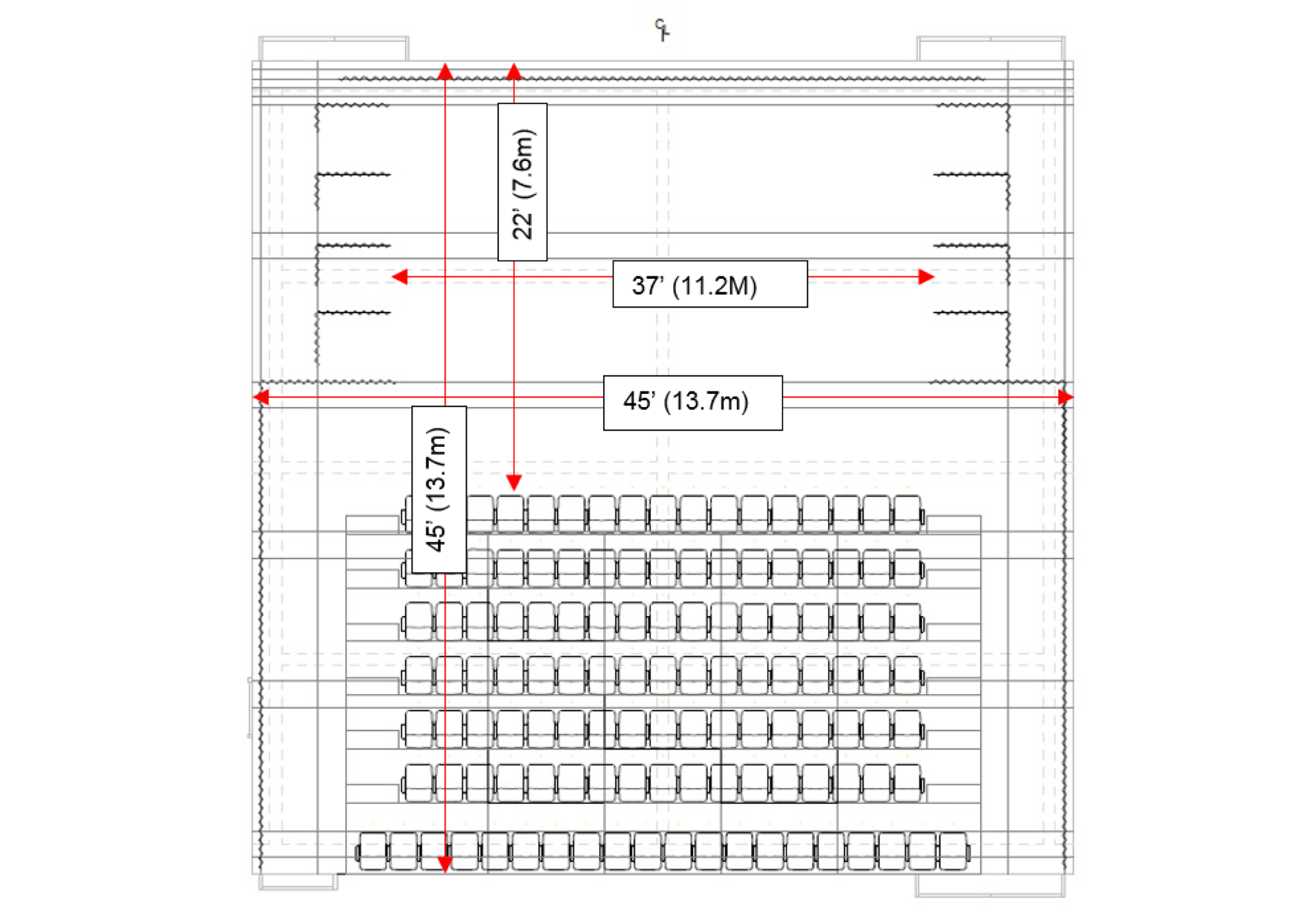

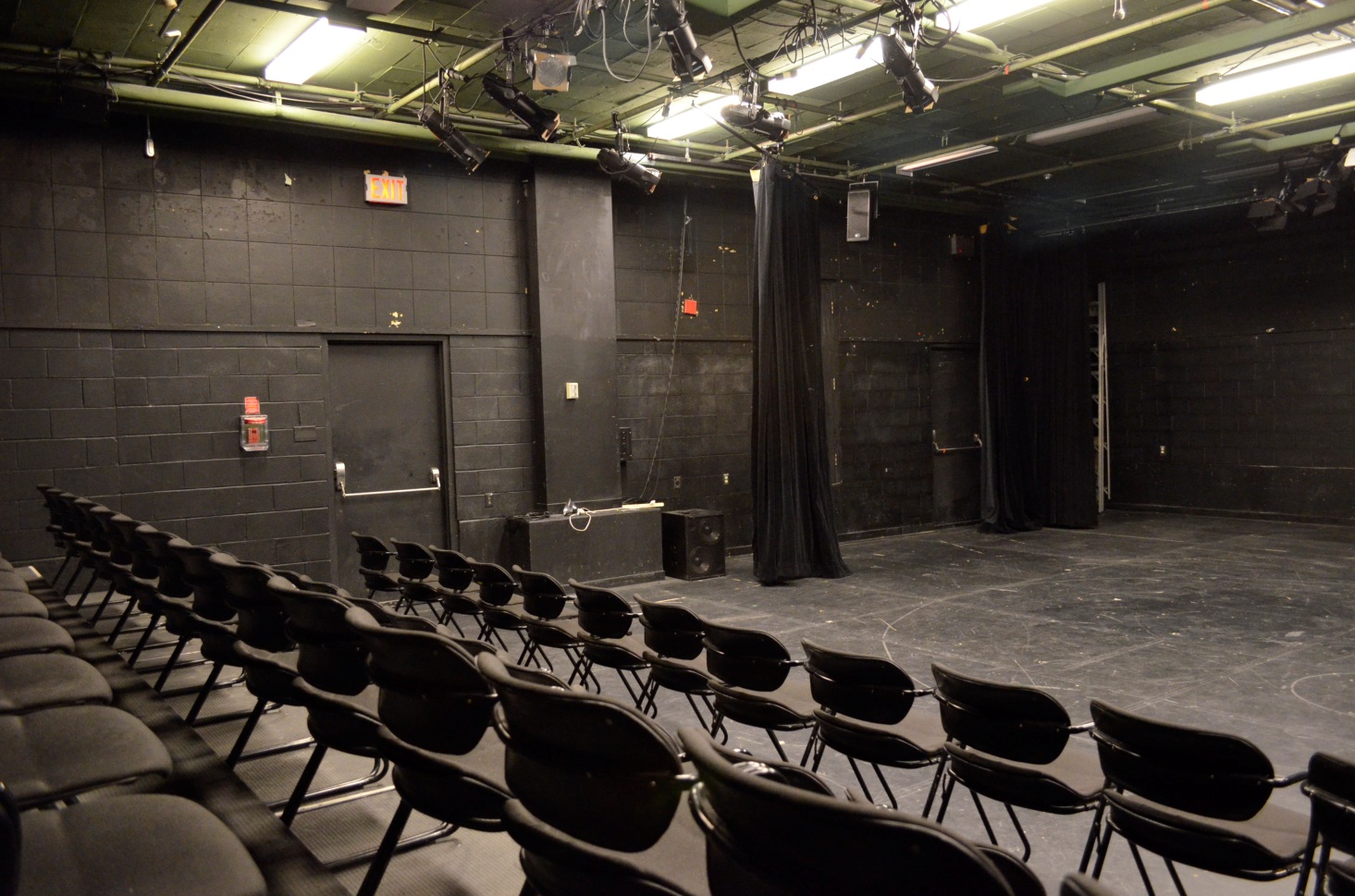

Black Box dimensions: 45' x 45' (13.7m x 13.7m)
Grid height: 22' (6.7m)

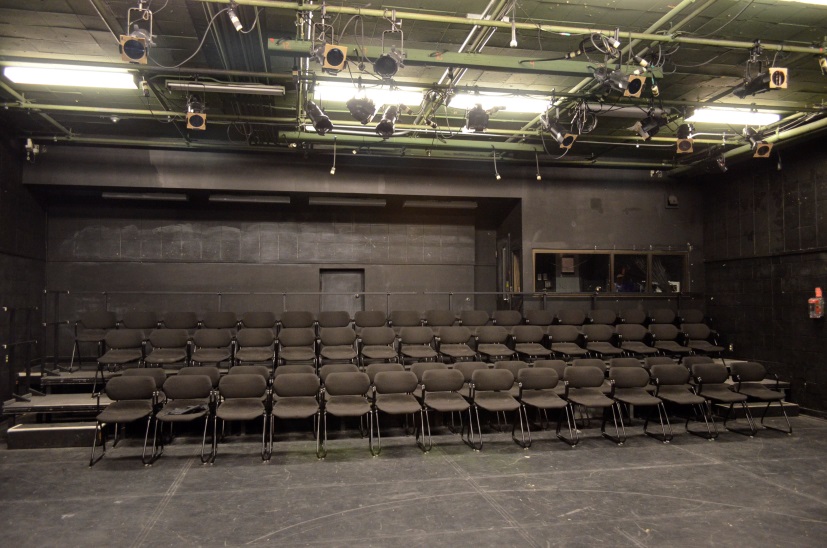

Riser configuration: End Stage. To change the configuration requires 4 technicians 4 hours to complete, and client is required to return risers to standard configuration at the end of the rental period.
Included in the rental:
Lighting inventory
Description |
Quantity |
---|
ETC ColorSource LED |
40 |
Source 4 Jr Zooms (20-50 deg.) |
20 |
Robe DL4S moving lights |
2 |
Lenses: |
|
S4 Lens Tube 19 deg. |
10 |
S4 Lens Tube 26 deg. |
15 |
S4 Lens Tube 36 deg. |
10 |
S4 Lens Tube 50 deg. |
10 |
S4 Cyc Adapter Tube |
6 |
Console & Distribution: |
|
ETC Ion console with fader wing |
1 |
Circuits (ETC Unison DRd6-12-120) |
12 |
Echo Relay Panel |
1 |
Misc: |
|
10' Booms w/ 50lb bases & 16 side arms |
10 |
Sound inventory
Description |
Quantity |
---|
DiGiCo S21 mixing console |
1 |
Outline Eidos loud speakers (Left, Centre, Right, Rear Left and Rear Right) |
5 |
Outline Eidos 6.5 loud speakers (can be used as stage monitors) |
4 |
Outline DVS 111 SW Subwoofers |
2 |
XLR Stage Inputs (12 + 12, L+R) |
24 |
XLR Stage Returns (4 + 4, L+R) |
8 |
Clearcom Headsets & beltpacks (wired) |
4 |
Clearcom Headsets & beltpacks (wireless) |
2 |
QLabPro (May only be used when a technician is present) |
1 |
